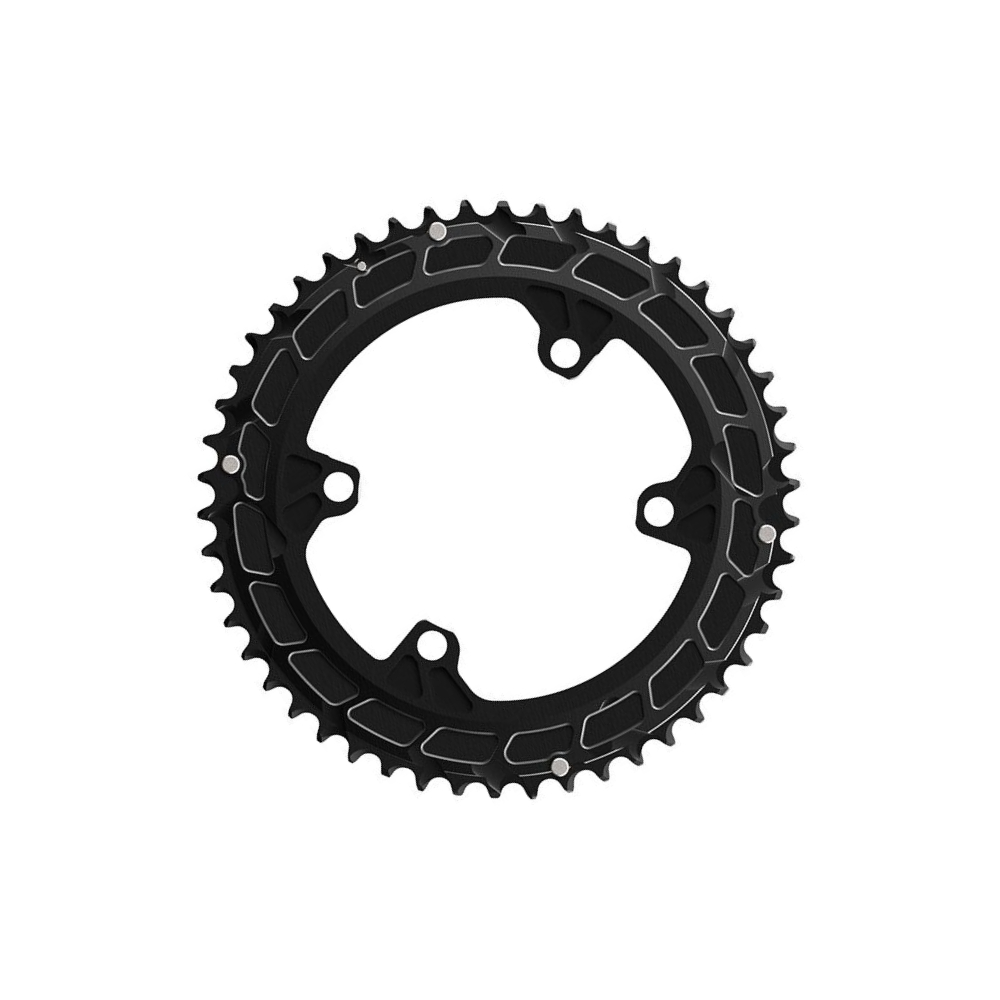

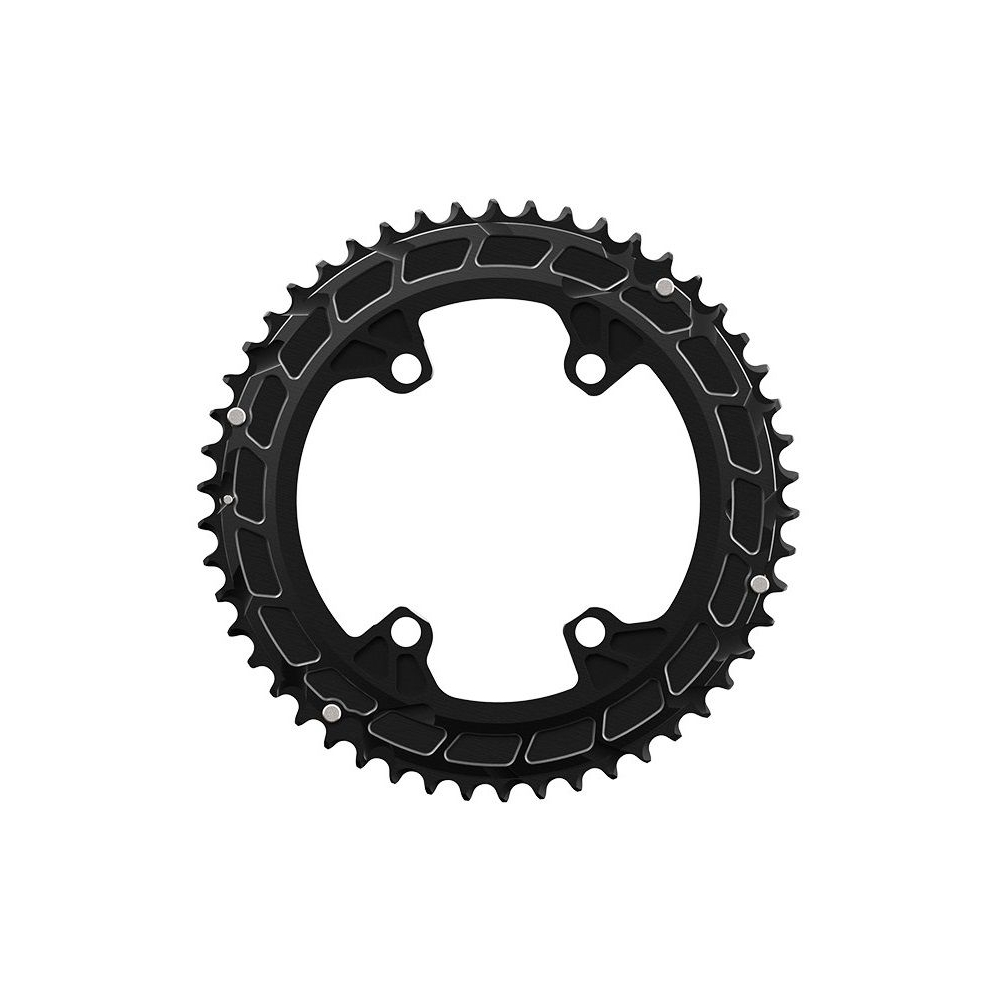

Rotor Round Ring BCD110X4 52T (36)

SKU: LNU-7-700

Brand:
Rotor

Category:
Bikes / Cycling

Sub-Category:
Equipment & Accessories

Our new Direct Mount chainrings are machine CNC’d from single blocks of ultralight aeronautic-grade 7075 aluminum and can be mounted straight onto the axle or crank arm. With fewer individual parts we’ve shaved precious grams off the component weight and focused on delivering you ease of assembly and maintenance. The integrated configuration means a simplified lightweight solution without compromising on durability.

PHP 6,500.00

The clever spline interface between the Direct Mount and the axle delivers a robust yet smooth engagement allowing you to maximise the efficiency in transmission of power in your pedal rotation. This advanced solution is achieved thanks to the patented anchoring system of our Optimal Changing Position (OCP) Mount technology. The unique design of the teeth incorporates all the experience gained in the technological development of oval Q Rings and provides a consistently fast and precise gear shift in the most challenging of cycling conditions.

Round BCD110x4 12-11s chainrings compatible with all ROTOR cranks using BCD110x4 spider and INspider power meter in combination with Shimano 2x12s or 2x11s groupsets.

In addition, these chainrings are also compatible with Shimano Dura-Ace FC-R9200-P, FC-R9200, FC-R9100 and Ultegra FC-R8100, FC-R8000 cranksets, offering fast and precise shifting while keeping weight very low.

ROTOR round chainrings come to complete the chainring range for those cyclists who have not yet decided to try Q RINGS oval chainrings.

When you are looking for speed, functionality and lightness, the components of your bike have to reflect these needs.

Sizes: 54/42 | 54/39 | 53/39 | 52/36 | 50/34 | 46/36
BCD: 110x4
Weight: 141 g (50/34T) | 110 g (50T) | 31 g (34T)
Chainline: 43.9 mm (standard axle) | 46.4 mm (offset axle)
Material: 7075-T6 aluminum alloy 100% CNC-machined
Cranks compatible: All ROTOR cranks using spider BCD 110x4. All ROTOR cranks using INspider power meter. Shimano Dura-Ace FC-R9200-P, FC-R9200, FC-R9100. Shimano Ultegra FC-R8100, FC-R8000.
Groupsets compatible: Shimano 2x12s & 2x11s | SRAM 2x11s
Chains compatible: 12s & 11s chains

*Cranks arms, axle, chainring bolts, spider & power meter not included.

**In some cases, to obtain a full compatibility between Shimano Dura-Ace FC-R9200-P, FC-R9200 or Ultegra FC-R8100 cranks, Shimano 2x12s groupsets and ROTOR chainrings could be necessary to install 0,5 mm washer in the right side of the axle.
